Laser marking is a precise technique with repeatable outcomes. Fiber laser marking machines produce legible markings on practically any metal rapidly and effectively. They are perfect for engraving on any metal surface such as aluminum, stainless steel, magnesium, lead, and titanium. They are used to permanently label data matrix codes, QR codes, serial numbers, barcodes, and logos, among other things. Micro Industrial Solutions takes pride in manufacturing and supplying the quickest laser metal marking machine on the market. These machines are in high demand in the industry due to their high performance, extended service life, and low maintenance.
Our products are highly appreciated for their quality and excellent features by customers and have helped us become one of the leading Metal Laser Marking Machine Manufacturers in India. Furthermore, in order to maintain good customer relations, we adhere to moral business practices and absolute openness in all of our dealings. We design and customize our machines as per customer demands. Also, we can supply these machines in a variety of specifications – whether you need a 50W fiber laser marking machine or a 20w fiber laser marking machine. For more information, visit our website today.

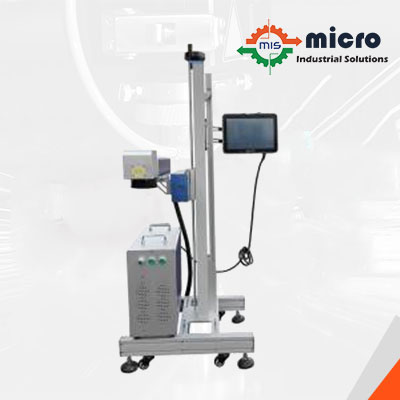

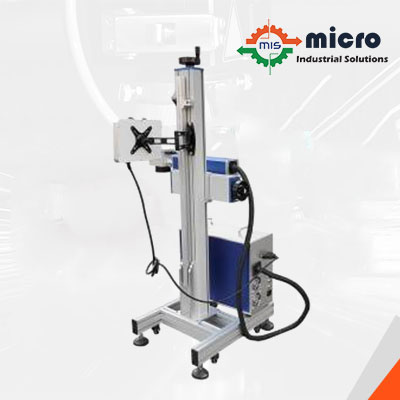

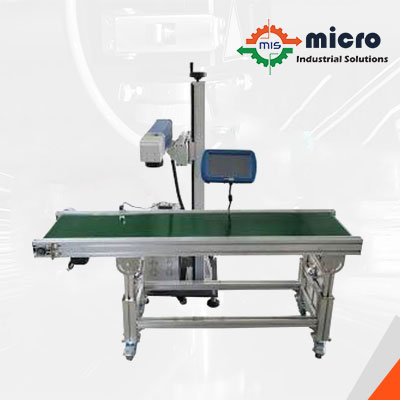

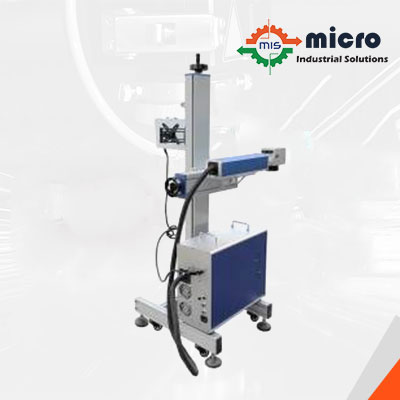

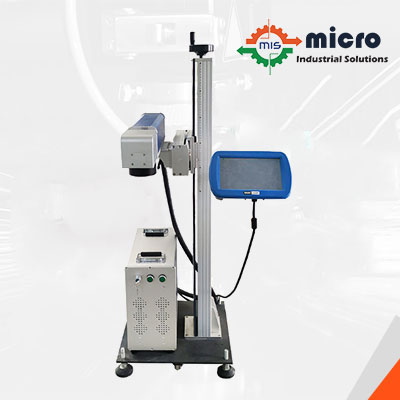

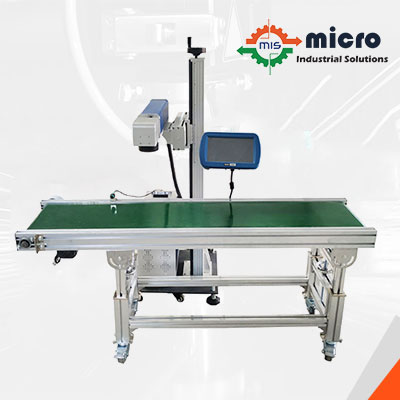

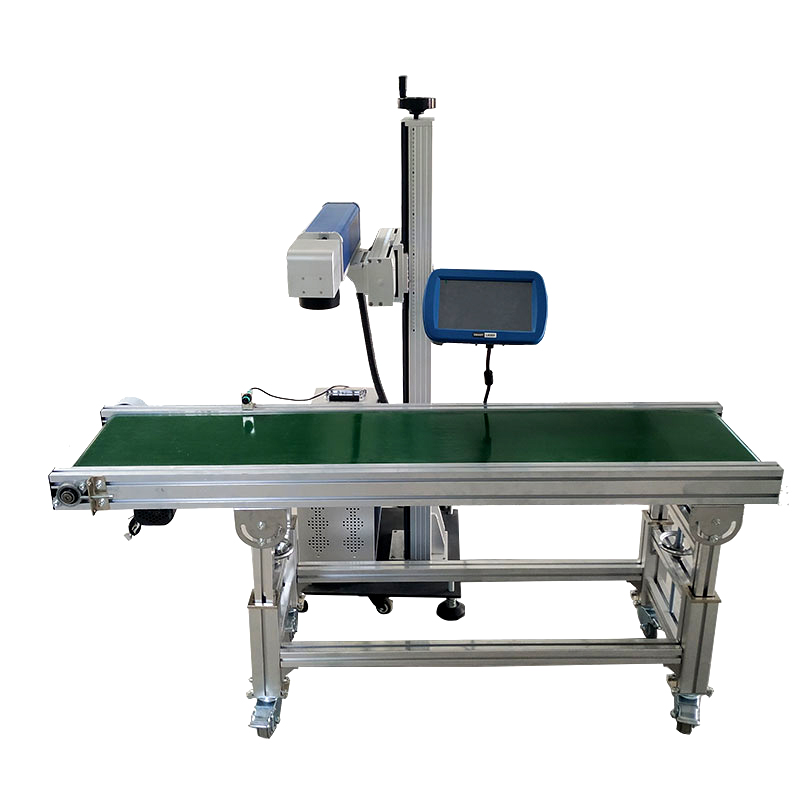

A flying laser marking machine comes with a special flying marking control system. The machine can be equipped with an assembly line to achieve assembly-line fast laser marking, which greatly improves processing efficiency compared to static processing. Also, this laser online marking machine can mark on plastic, leather, wood, and other non-metallic materials, coding. The laser online coding machine is mainly used for coding and anti-counterfeiting in pharmaceutical, and food packaging industries.
Product Features
- A high-quality laser scanning system for increased marking speed.
- Use a sophisticated fiber generator with a lifespan of up to 100,000 hours.
- High Precision Re-positioning accuracy is 0.003mm.
- It is environment-friendly and saves energy.
- Power consumption is lowered by 3-10 times when compared to the YAG laser.
- The cost of use is really low.
- The fiber laser marking machine requires little maintenance; essentially no parts need to be replaced after long-term use.
| Type | Laser Marking Machine |
|---|---|
| Power | 20W /30W/50W |

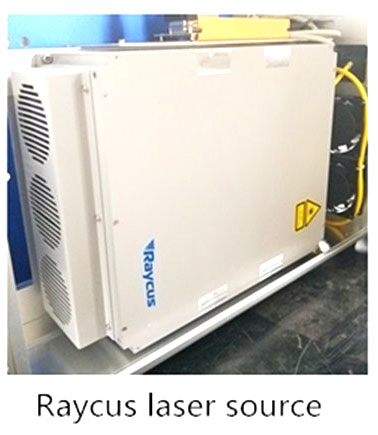

| Laser Brand | Raycus (Maxphotonics/IPG Optional) |
| Galvanometer | Sino |
| Main board | Beijing JCZ |
| Software | EZCAD 2.14.10 |
| Marking Area | 110mm*110mm |
| Optional Marking Area | 110mm*110mm/150mm*150mm/200mm*200mm |
| Marking Depth | ≤0.5mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7–32/64bits / W8–32/64bits |
| Cooling Mode | Air cooling–Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Package Dimension | 720mm x 460mm x 660mm |
| Gross weight | 65KG |
| Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
